EV-RPG2-ENZ and ADIN2299

Distinctive CIP Services
Product Category
Communications Adapter
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

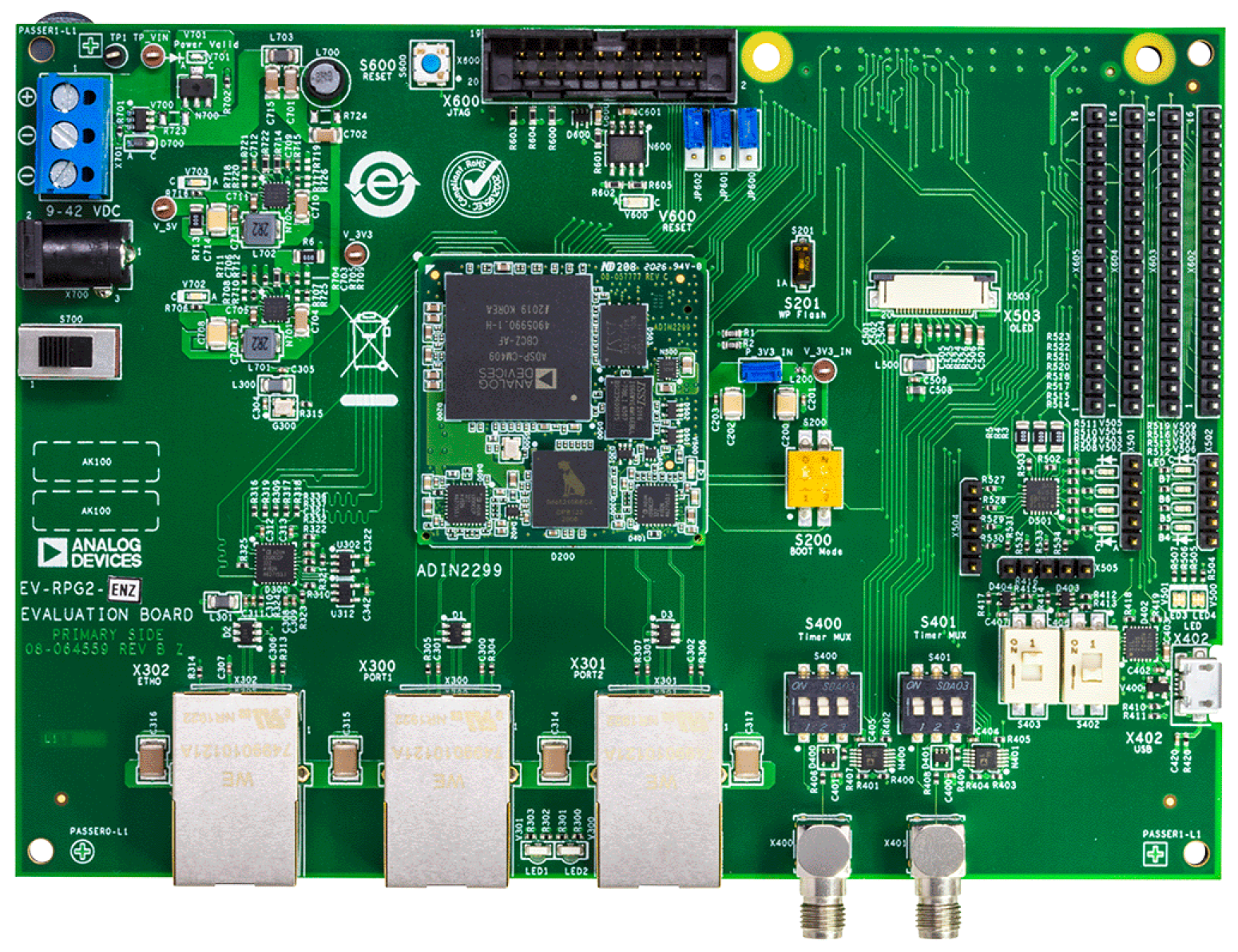

Ev rapidtop web2

The EV-RPG2-ENZ is an evaluation kit for the RGP2 platform, ADIN2299. The EV-RPG2 provides an end to end evaluation of the communication path from the host processor to the programmable logic controller (PLC) or PC-based tool. EV-RPG2 evaluation kits can completely verify the communication path between the host processor and a PLC before integrating the network interface into the end field device.

The ADIN2299 is a complete, pretested solution that manages the industrial protocol and network traffic for an applications processor.

The module contains everything needed to participate in a Ether-CAT, PROFINET® real-time (RT) and isochronous real time (IRT), EtherNet/IP network, including a communications controller, protocol stack, flash, RAM, follower controller, and physical layer (PHY). An applications processor connects via a universal asynchronous receiver transmitter (UART), serial peripheral interface (SPI), or Ethernet interface.

At the software layer, the applications processor connects to a unified interface so the supported industrial protocols can be used without changing the applications processor software. The ADIN2299 platform was precertified so that the field device can operate in any of the supported industrial Ethernet networks.

ADIN2299 Features and Benefits

  • Configurable industrial protocol support
  • ROFINET RT (Class B)
  • PROFINET IRT (Class C): coming soon
  • EtherNet/IP with DLR
  • EtherCAT
  • All protocols precertified
  • Configurable applications processor interface
  • UART: 115,200 bps to 1,000,000 bps
  • Ethernet at 10 Mbps or 100 Mbps
  • SPI follower: 10 MHz maximum clock

ADIN2299 Product Details

  • I2C, QSPI, and CAN: future option
  • Industrial Ethernet interface-compliant to IEEE 802.3, 10Base or 100Base transmit half and full duplex
  • Single 3.3 V power supply, 840 mW
  • Cycle time down to 1 ms (cycle times vary based on protocol, link type, and application data)
  • 194-ball chip-scale package BGA form factor
  • RoHS 3 compliant
  • –40°C to +85°C industrial temperature range

Find the product overview and data sheet on https://www.analog.com/en/products/adin2299.html#product-overview

Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 12105 Year: 2022

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
