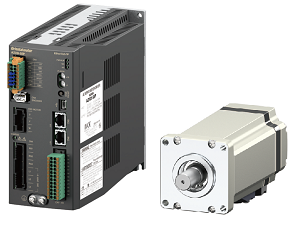

AZX offers a servo driver which is applicable to EtherNet/IP communication.

Since this product performs high torque characteristics in high-speed range, it is suitable for the positioning applications with large travel amounts. AZX has a built-in controller type driver, thus sequence functions such as linked operation, timer setting between different operations, conditional branching, and loop, etc. are available.

AZX motor is equipped with a battery-free mechanical type absolute sensor (ABZO sensor). Since it applies to an absolute system, no home sensor or limit sensor is required. In addition, since it is a mechanical type sensor, battery is not required for position holding. Motor position information is mechanically controlled by a mechanical sensor. Since the basic operation of this product is same as our AZ series, it will be easy to use both products in the same equipment.

Communication Specifications:

• Output (Scanner → Adapter): 40 bytes
• Input (Adapter → Scanner): 56 bytes
• RPI range: 1 to 3200ms
• Network topology: Star, Linear bus, Ring (DLR: Device Level Ring)

Product Specifications:

• Rated Output Power ： 400W, 600W
• Rated Speed ： 3000 r/min
• Maximum Speed ： 5500 r/min
• Detector ：
  Mechanical Absolute Encoder
  1 rotation 16bits, multiple rotations ±900 rotations (1800 rotations)
• Main Power Supply :
  Three-phase 200-240 VAC -15～+6% (50/60Hz)
  Single-phase 200-240 VAC -15～+6% (50/60Hz)
• Control Power Supply : 24 VDC±5%
• Operating Ambient Temperature : 0 to +55℃ (+32 to +131℉) (non-freezing)

Website

www.orientalmotor.com/servo-motors/index.html

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Download the Declaration of Conformity DOC Number: 12280 Year: 2022

Download the EDS File
