Absolute Rotary Encoder

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Sensors Process
Device Profile
Encoder: 0x22

Saved to Favorites

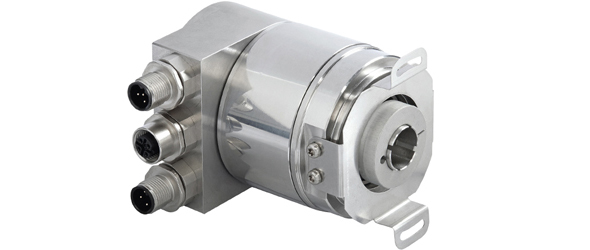

Fraba posital ethernet encoder

The Absolute Rotary Encoders of the Optocode (OCD) series can work in applications of the industrial environment. Several parameters are changable: Resolution per Revolution, Total Resolution, Preset Value, Code Sequence, ....

Product overview:
  • Integrated Switch
  • Programmable According to CIP-Specification
  • Resolution per Revolution up to 16 bit (65536 Steps)
  • Up to 16384 (14 bit) Revolutions With Mechanical Gearing, No Battery Back Up
  • Operating Temperature -40 to +85 °C
  • Environmental Protection up to IP 67 (Aluminium or Stainless Steel)
  • Hollow Shaft or Solid Shaft Flanges
  • UL Certified
  • ATEX versions 1&21, Group I and II on request
  • Six Diagnostic LEDs
  • Programmable: IP Address, Resolution, Velocity, Counting Direction
  • Robust Electrical Connection with M12 Plugs or Cable
  • Boot loader for firmware upgrade
  • Round axis function

Phone
+49 2219 6213 0
Email
Website
www.posital.com/en/products/absolute-encoders/ab...
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10708 Year: 2013

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 74
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 10
Explicit Messaging: Target 64
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
