AMS 358i

Distinctive CIP Services
Product Category
Sensors Discrete
Device Profile
Encoder: 0x22

Saved to Favorites

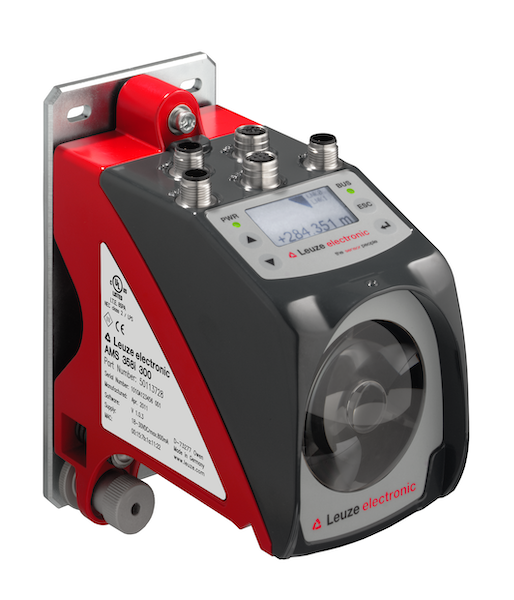

Leuze ams 358i ppic ams300i r display 1

AMS 358i - Absolute laser distance measurement system

The AMS 358i optical laser measurement system measures distances to stationary as well as moving system parts. The light emitted by the laser diode is reflected by a reflector onto the receiving element of the AMS 358i. The high absolute measurement accuracy of the laser measurement system as well as the short integration time are designed for position control applications.

 Features Include:

  • The AMS 358i is equipped with an EtherNet/IP interface for transferring the measured distances, speed as well as various status messages
  • Integrated 2-port switch
  • Absolute measurement system with very high accuracy, tested by the PTB (German Metrology Institute)
  • Operating range: up to 300m
  • Standard M12 plug connectors
  • Simple handling due to separate fasting and alignment elements
  • Display informs about device status
  • For outdoor or low-temperature applications, a model with integrated heating is available

+49 7021 573 0
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10893 Year: 2021

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 8
Explicit Messaging: Originator 0
I/O Messaging: Scanner 0
I/O Messaging: Target (Adapter) 8
Explicit Messaging: Target 8
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
