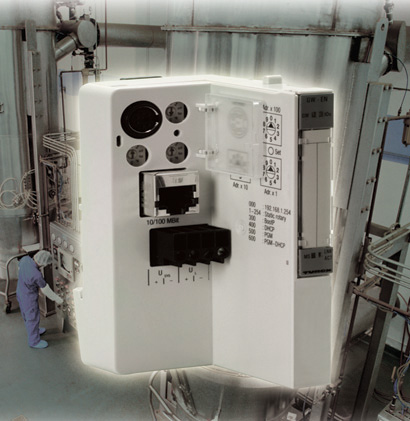

TURCK's BL20 Gateways for Use with EtherNet/IP™

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
I/O
Device Profile
Communications Adapter: 0x0C

Saved to Favorites



7aa227d63472727c701b1eb60ca5a7f787aaf47e

The new line of BL20 Ethernet gateways may be controlled by a PLC or setup as a completely separate system, all while using a centralized server to monitor operations without ever having to change the existing control system.

Features Include:

  • Gateway has a standard PS2 programming port and visible rotary address switches
  • I/O modules are replaceable without disconnecting power or removing wiring
  • I/O modules are color coded and keyed to prevent insertion of an incorrect module
  • The wiring base is available in screw or tension clamp terminations
  • Pin and socket connections between the bases provide a reliable electrical connection
  • End plate provides a mechanical termination of the BL20 system and guarantees vibration resistance of the system
  • One BL20 system can handle up to 74 electronic modules
  • RFID interface is available
  • Available with programmable controller on board to provide de-centralized control capability of I/O
  • CoDeSys software is FREE IEC 61131-3 programming environment used to program gateways
  • OPC server capability is available to provide real-time I/O data to any existing OPC solution
  • DIN rail mount
  • I/O assistant software is FREE optional assistance for online or offline engineering, parameter set-up, documentation, commissioning, and diagnostics

Phone
+1 800 544 7769
Email
Website
www.turck-usa.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10480 Year: 2014

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 52
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 20
Explicit Messaging: Target 32
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
