Altivar Process – ATV630xxxxxx, ATV650xxxxxx, ATV930xxxxxx, ATV950xxxxxx

Distinctive CIP Services
Product Category
Motor Control AC Drives
Device Profile
AC Drives: 0x02

Saved to Favorites

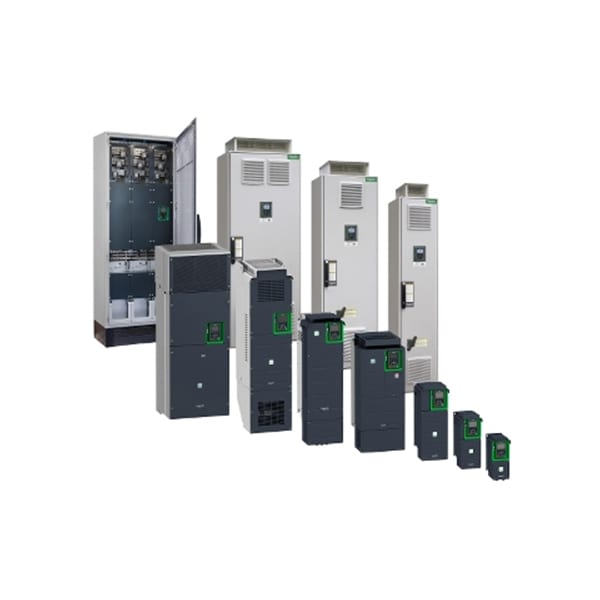

Atvpro 62317 rpmgu18005 se

Altivar Process is the new comprehensive range of variable speed drives from Schneider Electric, covering the majority of industrial applications with two series:

  • ATV600: drives focused on fluid management and processing and energy saving.
  • ATV900: drives focused on maximum productivity with exceptional motor control and connectivity.
Depending on customer requirements, Altivar Process drives are available as wall-mounting, floor-standing, and optimized solutions for integration in cabinets.

  1. Process efficiency:
    • Motor performance and connectivity
      • Excellent motor performance on any type of motor
      • Ethernet dual port offers maximum services such as connection to the control room and process transparency
      • Network service helps ensure operation continuity even in case of connection breakdown
      • Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance
    • Complete control of your applications
      • Maximize your application performance by using drive-to-drive communication: total control of any kind of coupling in master/slave applications
      • Total management and flexibility of speed and torque on rigid and elastic coupling
      • Asset monitoring functions to increase production and reduce downtime.

  2. Real-time intelligence:
    • Web server and services via Ethernet
      • Embedded Web server interface based on the Ethernet network gives you process
        monitoring with your daily working tools.
      • Local and remote access to energy use and customized dashboards means your energy is
        visible anywhere, any time, on PC, tablet, or smartphone.

  3. User-friendliness:
    • Simple integration in PLC environments
      • Easy integration thanks to standardized FDT/DTM and ODVA technology
      • Supported by predefined EcoStruxure Control Expert libraries
      • Easy access via PC, tablet, or smartphone > Robust connection via Ethernet.
    • Sophisticated service concept:
      • Modular design provides easy spare parts logistics
      • Optimized maintenance costs due to dynamic maintenance schedule, with integrated
        monitoring of individual components
      • Simple exchange of power modules and fans
      • Quick assistance with dynamic QR codes and Customer Care App

  4. Green product:
    • Green product Designed to have a smaller carbon footprint:
      • The Green Premium product label, Schneider Electric’s eco-mark, indicates your compliance with international environmental standards such as:
        • RoHS-2 according to EU directive e 2002/95
        • REACH according to EU regulation 1907/2006
        • IEC 62635: The end-of-life instructions comply with.

Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11360 Year: 2016

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 32
Explicit Messaging: Originator 0
I/O Messaging: Scanner 0
I/O Messaging: Target (Adapter) 1
Explicit Messaging: Target 32
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
